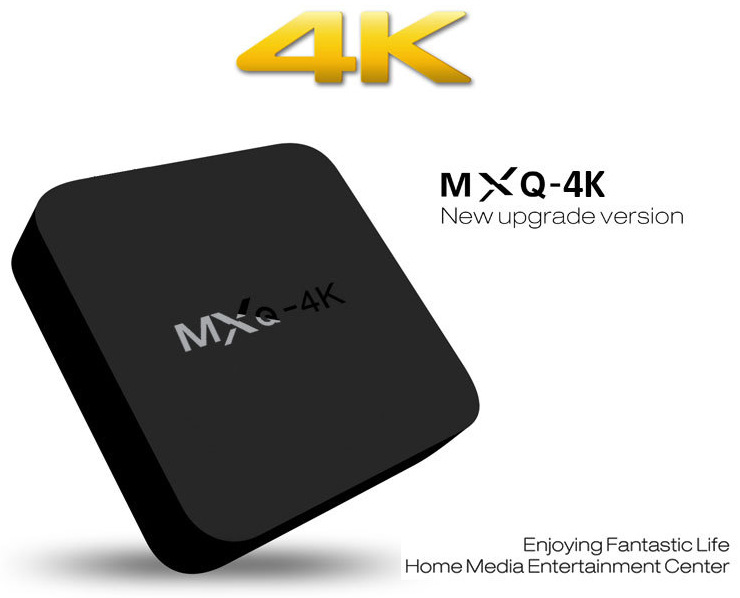

4k TV BOX Set MXQ Top Box RK3229 Quad Core Android Network Player 1G 4k1080p HD digital smart set-top TV box connected usb hdmi WiFi networkDVB IPTV Black - Best Price

image: 4k TV BOX Set MXQ Top Box RK3229 Quad Core Android Network Player 1G 4k 1080p HD digital smart set-top TV box connected usb hdmi WiFi network DVB IPTV Black
4k TV BOX Set MXQ Top Box RK3229 Quad Core Android Network Player 1G 4k 1080p HD digital smart set-top TV box connected usb hdmi WiFi network DVB IPTV Black   | Image source: Lazada


Price: RM 113.05


Product details of 4k TV BOX Set MXQ Top Box RK3229 Quad Core Android Network Player 1G 4k 1080p HD digital smart set-top TV box connected usb hdmi WiFi network DVB IPTV Black

RK3229. 28nm Quad core Cortex A7. High cost performance 4K OTT Box solution '
ARM Mali-400 GPU '
Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@60Hz with HDCP 1.4/2.2 '
1GB DDRIII '
8GB Nand Flash '
802.11 b/g/n. RTL8089  '
Ethernet GMAC 10/100/100M Ethernet controller ' '
Infra Remote control '
DC input 5V/2A '
Built-in HDMI 1.4b transmitter including both controller and PHY with CEC and HDCP. 4K @ 60FPS max resolution output '
TF cards (up to 32GB) '
2 High speed USB 2.0.support USB DISK and USB HDD '
SPDIF output '
Ethernet:10/100M. standard RJ-45 '
5V/2A '
 '
Android 5.1 '
Hardward 3D graphics acceleration '
4K VP9 Video decoder. 4K 10-bits H.265/H.264 video decoder '
1080P other video decoders (VC-1. MPEG-1/2/4. VP6/8) '
Support conversion from BT.2020 to Rec.709/Rec.601 Video post processor: de-interlace
Support 4K 10-bit H.265/H.264/VP9 video playback and display '
Support H.263/H.264 2160P@ 24fps '
Support VC-1 .MPEG - 1 1080p @ 60fps '
Support MPEG- 2 2160P @ 24fps '
Support MPEG-4 1080P @ 60fps '

Product Name RK3229 Quad Core  Smart TV Box
Model No. MXQ-4K          H.264-H.265、4Kx2K  10-bits   Android TV BOX   HDMI 2.0
Product Picture
Hardware

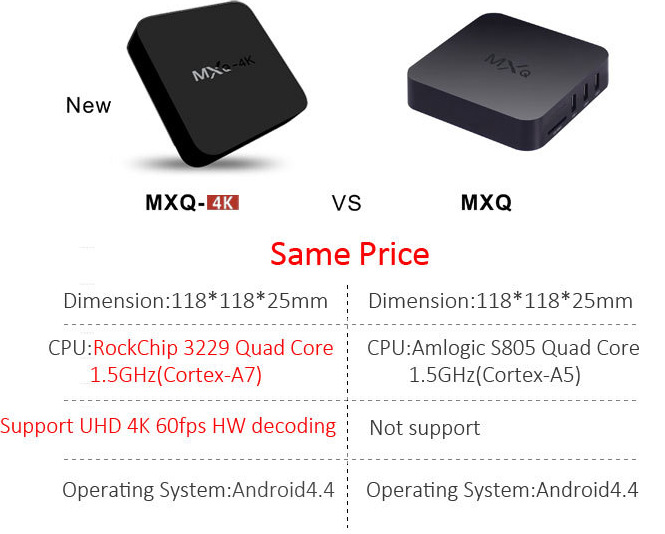

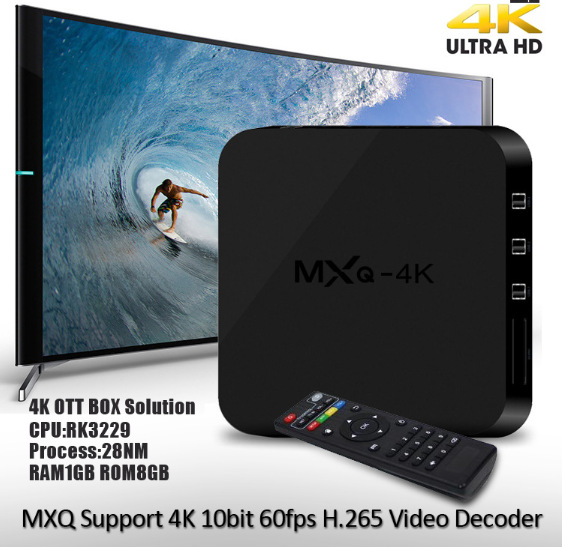

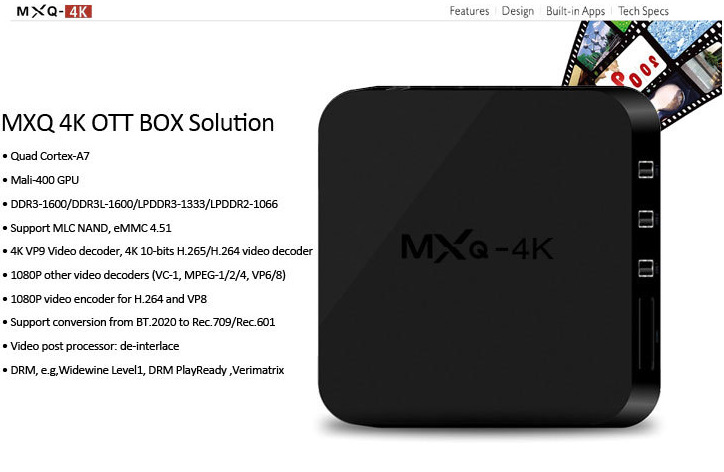

CPU RK3229, 28nm Quad core Cortex A7, High cost performance 4K OTT Box solution
GPU ARM Mali-400 GPU
HDMI Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@60Hz with HDCP 1.4/2.2
Support 4K 10-bit H.265/H.264/VP9 video playback and display
Memory 1GB DDRIII
Flash 8GB Nand Flash (up to 32GB)
WiFi 802.11 b/g/n, RTL8089(RTL 8723,optional)
Wired network Ethernet GMAC 10/100/100M Ethernet controller
Support 10/100/1000 data transfer rate and RGMII interface
Support 10/100Mbps data transfer rate and RGMII interface
IR Infra Remote control
Power Supply DC input  5V/2A

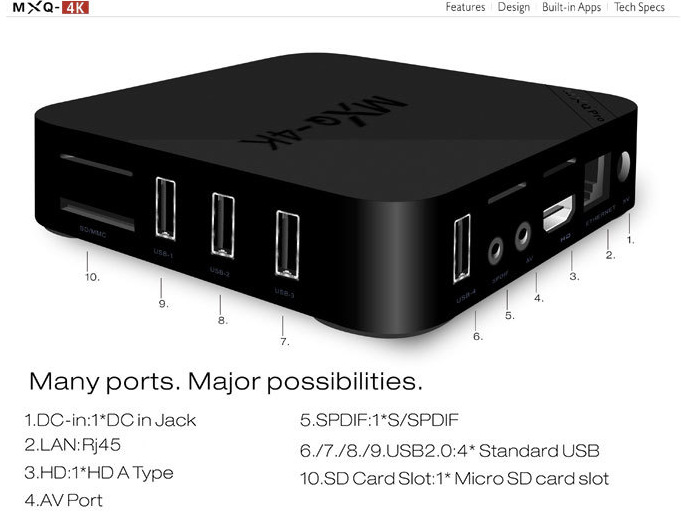

I/O:

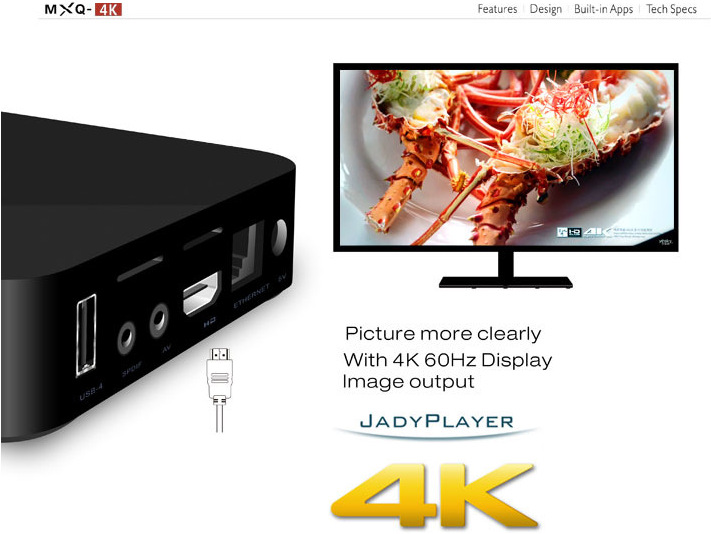

1*HDMI 1.4b with CEC Built-in HDMI 1.4b transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output
1*Mirco SD Card (TF) TF cards (up to 32GB)
4*USB HOST 2High speed USB 2.0,support USB DISK and USB HDD
1*SPDIF SPDIF output
1*RJ45 Ethernet:10/100M, standard RJ-45
1*Power input 5V/2A
Accessories Gift box
Power charger adapter
HDMI cable (optional)
IR remote control  (optional)
User's Manual
Software
OS Android 4.4.4
3D Hardward 3D graphics acceleration
Video decoding 4K VP9 Video decoder, 4K 10-bits H.265/H.264 video decoder
1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8)
Support conversion from BT.2020 to Rec.709/Rec.601
Video post processor: de-interlace
Support H.263/H.264 2160P@ 24fps
Support  VC-1 ,MPEG - 1 1080p @ 60fps
Support MPEG- 2 2160P @ 24fps
Support MPEG-4 1080P @ 60fps
Support AVS 1080p @ 60fps
Support  MVC  2160P @ 24fps
Support WMV,3GP,MKV,ASF,3G2M4V,MJPEG,RV8,RV9,RV10 1080P@60fps
Support HEVC decoder
Support Main/Main10 HEVC/H.265 decoder, 4K @ 60FPS
Support 4096x2304 resolution
Support HDMI 720P-2160P FUII 3D HD( 2160P, 3840 * 2160 ), 4K+2 K
Support flash11.1
Video Decoder format H.264,H.265,VP8,MVC(1080P)
Video format Supports DIVD/DIVX/REAL8 / 9 / 10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8 2160P @ 24fps
Audio format Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A , FLAC, APE,  AMR, RA, WAV, etc
Picture format Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc Resolution 8192x8192
HDD file system FAT16 / FAT32 / NTFS
Support Subtitle SRT, SMI, SUB, SSA, IDX+USB

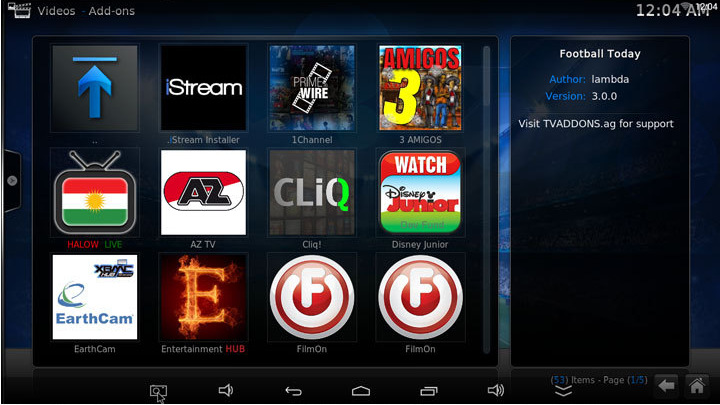

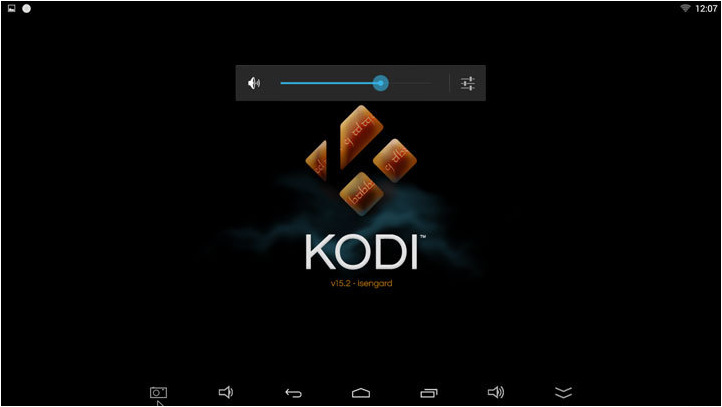

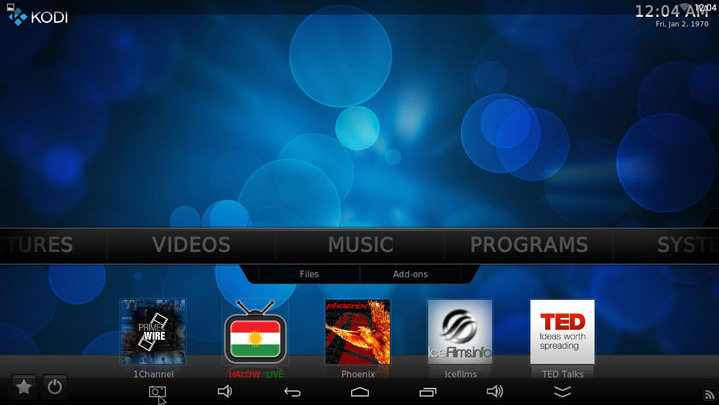

XBMC/KODI Support
DRM Support Widewine Level1, DRM PlayReady ,Verimatrix, built in Trustzone,
HDCP 2.2/1.4
Support language Chinese, English, Germany, Japanese, Korea etc.  multilateral languages
Appliactions
Online Browse all video websites, support Netflix, Hulu, Flixster, youtube etc

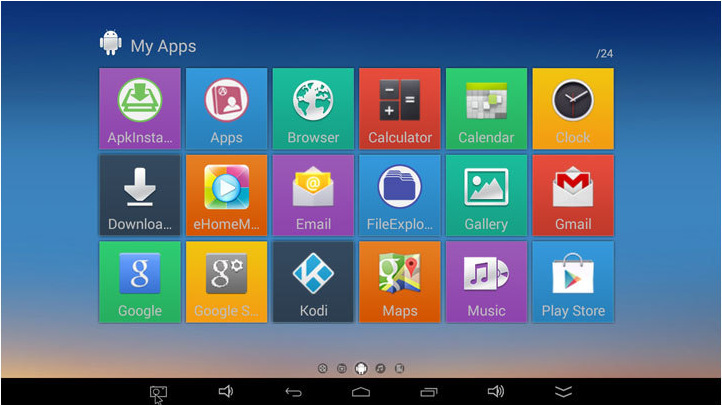

Apps Apps download freely form android market, amazon appstore etc
Medium Local Media playback, support HDD, U disck ,SD card
Talk online Support SKYPE video call, MSN, facebook, twitter, QQ  etc
Others Support WiFi hotpiont, could  be as a wireless router
Support DLNA, Google TV Remote, LAN, 3D Moive, Email, office suit etc
Packing
Dimension 118*118*25 mm
N. Weight 154g
G. Weight 560g
Color Box Dimension 240*150*60mm
The Specifications is subject to change without prior notice.
Trademarks are the property of their respective owners.

Spesifikasi4k TV BOX Set MXQ Top Box RK3229 Quad Core Android Network Player 1G 4k 1080p HD digital smart set-top TV box connected usb hdmi WiFi network DVB IPTV Black
SKU MX240ELAATZICNANMY-65134569
Model Artisan Smith
Media Player Type Box
Warranty type No Warranty
